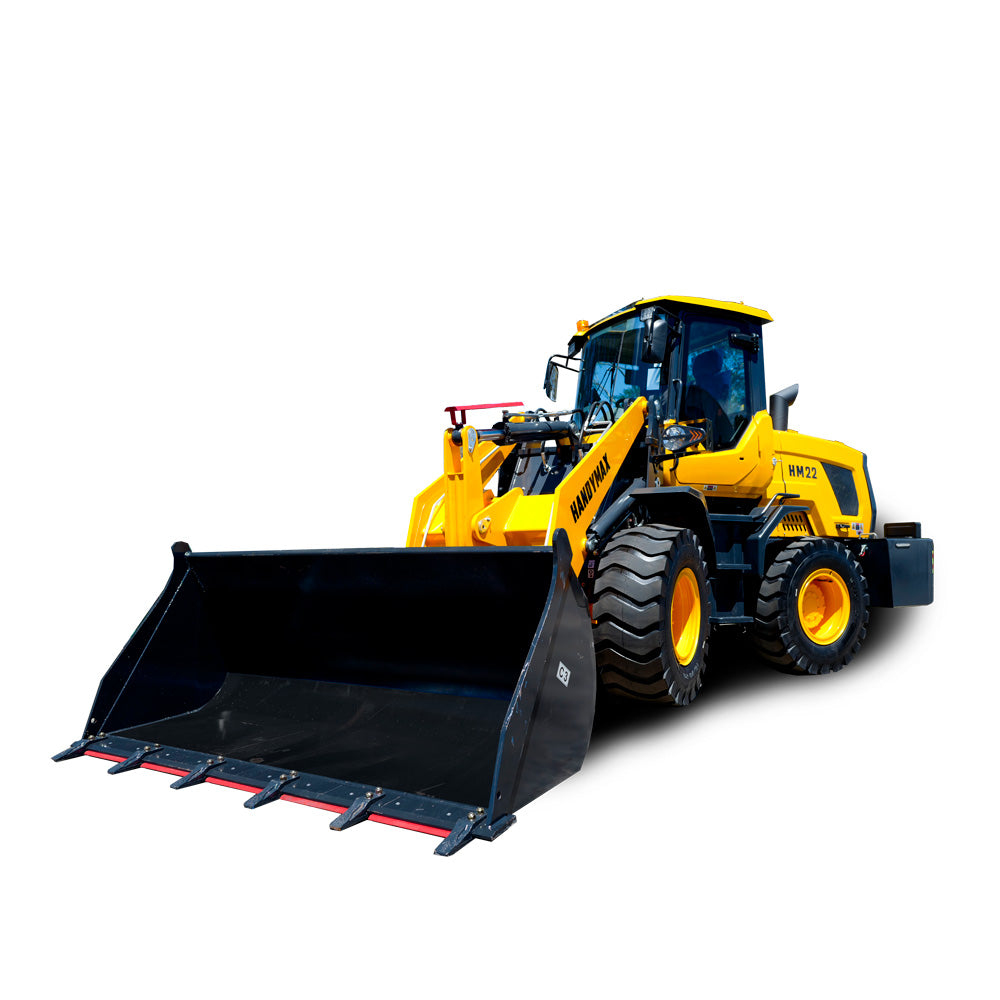

HANDYMAX HM22 Wheel Loader – Reliable Power and Versatility
The HANDYMAX HM22 is a 4x4 wheel loader powered by a 102 HP turbo diesel engine, built to handle a variety of earthmoving and material handling tasks across different worksites.

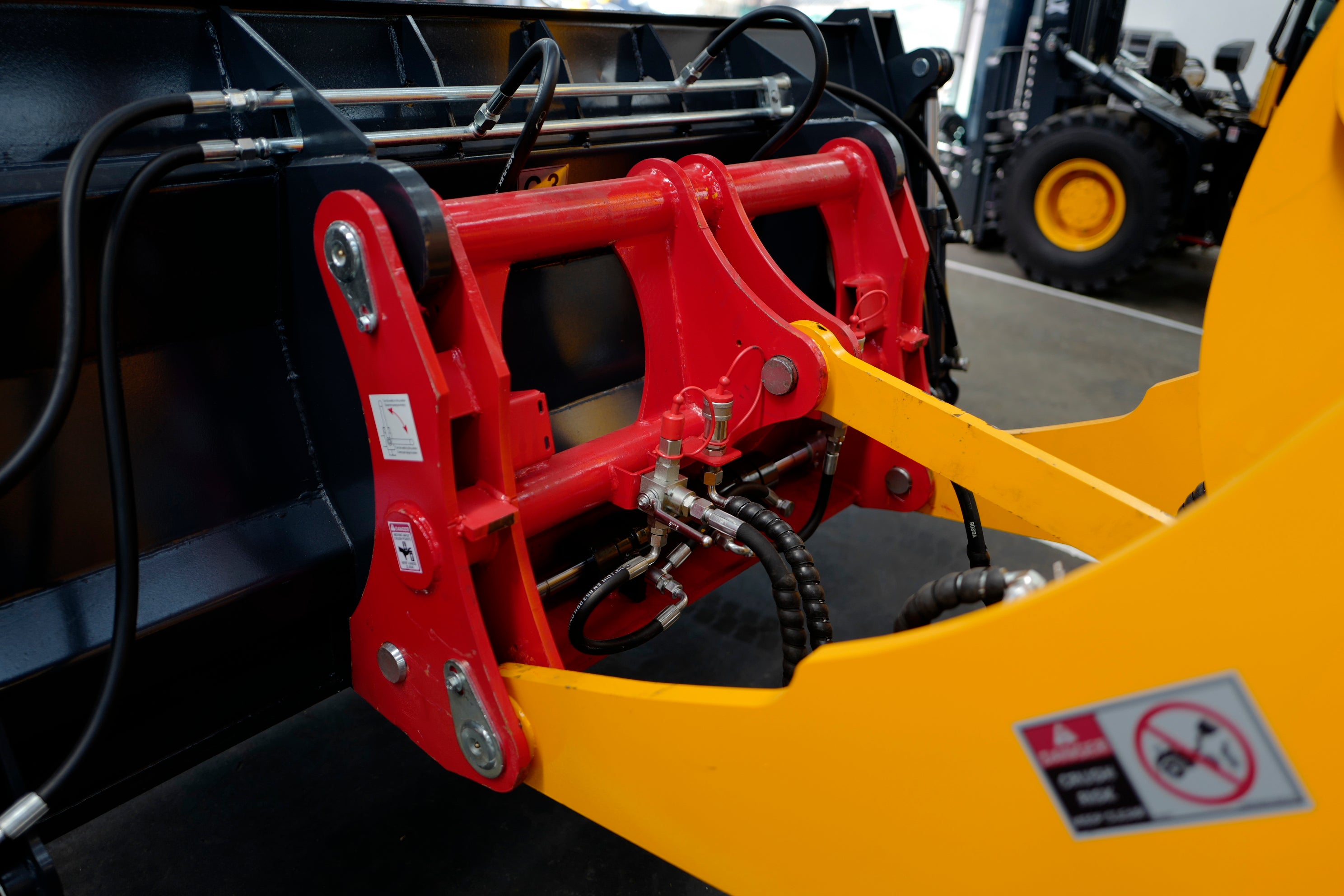

It features an automatic power-shift transmission with 4 forward and 4 reverse speeds, hydraulic torque converter, and a hydraulic quick hitch for fast attachment changes.

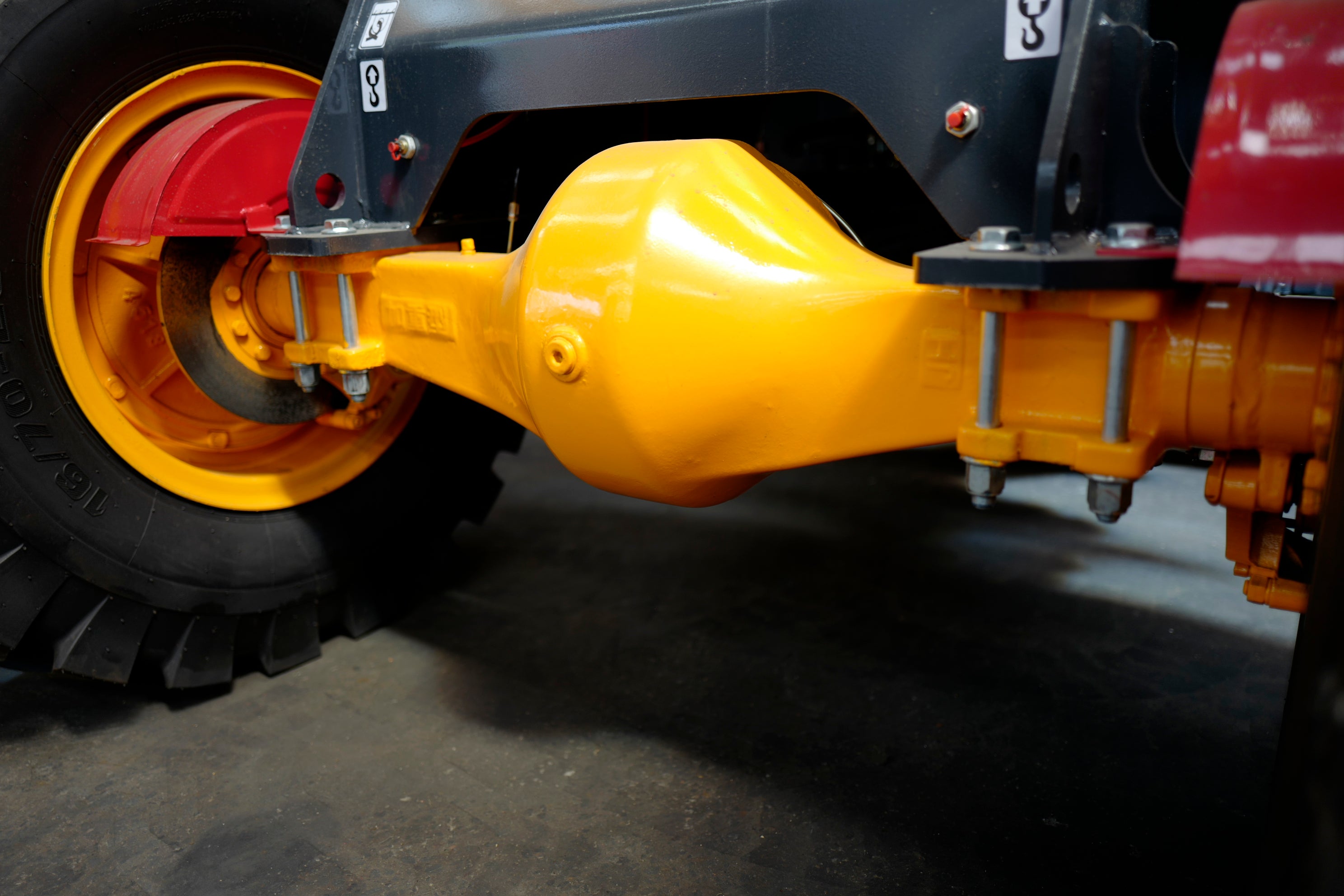

The 3.8L YUNNEI engine delivers smooth power transfer through a proven driveline and four-wheel drive system.

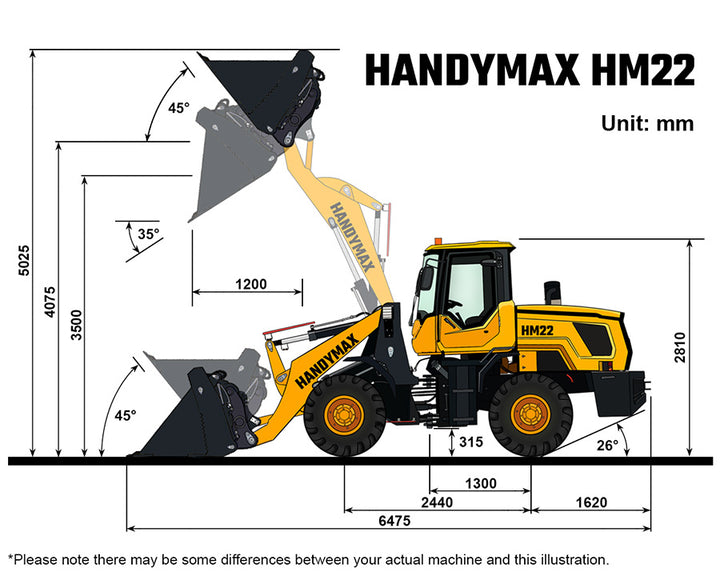

With a maximum lift height of 4,080 mm and 2,200 kg rated lift capacity, the HM22 suits both construction and agricultural operations where reach and reliability matter.
The operator cabin includes air-conditioning, a rear-view camera, and ROPS protection to support productivity and comfort on long working days.
Key Specifications:
• Engine: 102 HP YUNNEI Turbo, 3.8 L, 4-cylinder
• Operating Weight: approx. 6,000 kg
• Lift Capacity: 2,200 kg
• Max. Lift Height: 4,080 mm
• Bucket Capacity: up to 1.2 m³ (heaped)
• Hydraulic Flow Rate: 126 LPM @ 2,466 psi
• Max. Travel Speed: 35 km/h
• Tyres: 16/70 – 20 Pneumatic (Front & Rear)
Ideal for rural, municipal, and construction applications, the HM22 offers reliable performance and low maintenance ownership.
