HANDYMAX HM22R Wheel Loader with Hydraulic Ripper – Built for Tough Ground and Versatile Work
The HANDYMAX HM22R is designed to handle tough jobs, delivering the power and performance you need to get the job done right.

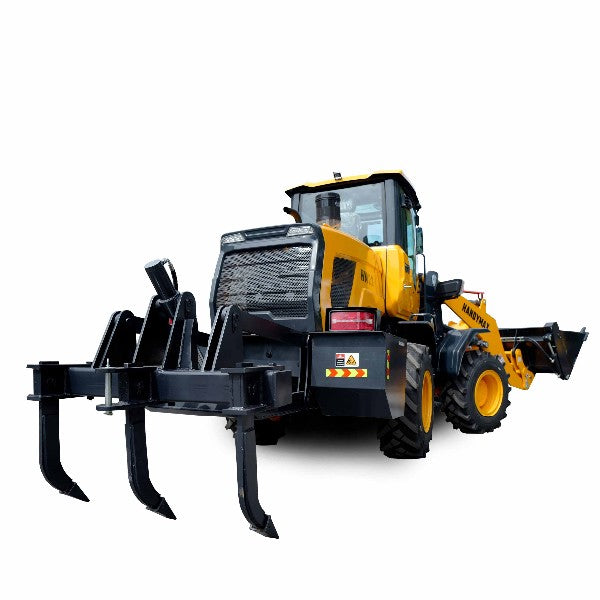

Based on the proven HM22 platform, this model is fitted with a rear hydraulic ripper featuring three removable teeth, ideal for loosening compacted ground, land preparation, or light agricultural ripping work.
Powered by a 102 HP YUNNEI turbo diesel engine and equipped with a 4-speed automatic power-shift transmission, the HM22R offers smooth operation, strong torque, and 4WD traction across demanding terrain.

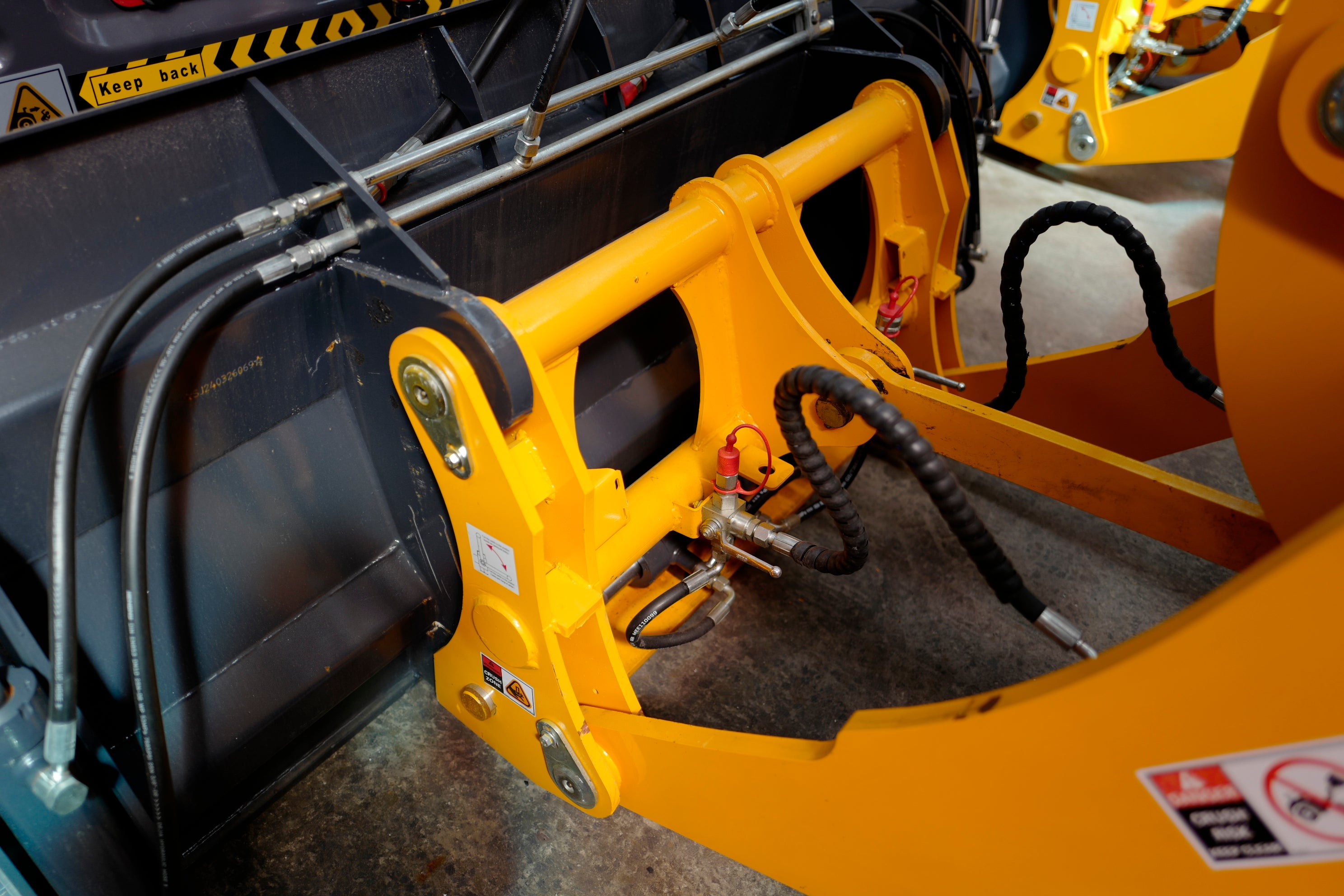

A hydraulic quick hitch system comes standard, enabling fast changes between buckets, forks, augers, and other loader attachments.
Key Specifications:
• Engine: 102 HP YUNNEI Turbo, 3.8 L, 4-cylinder
• Operating Weight: approx. 6,000 kg
• Lift Capacity: 2,200 kg
• Max. Lift Height: 4,080 mm
• Bucket Capacity: up to 1.2 m³ (heaped)
• Rear Hydraulic Ripper: 3 teeth, removable
• Transmission: 4 Forward / 4 Reverse Speeds
• Travel Speed: up to 35 km/h
• Cabin: Air-conditioning, rear-view camera
The HM22R helps maximise productivity and return on investment by combining reliable loading capability with ground preparation functionality—all in one compact and durable machine.
